Description

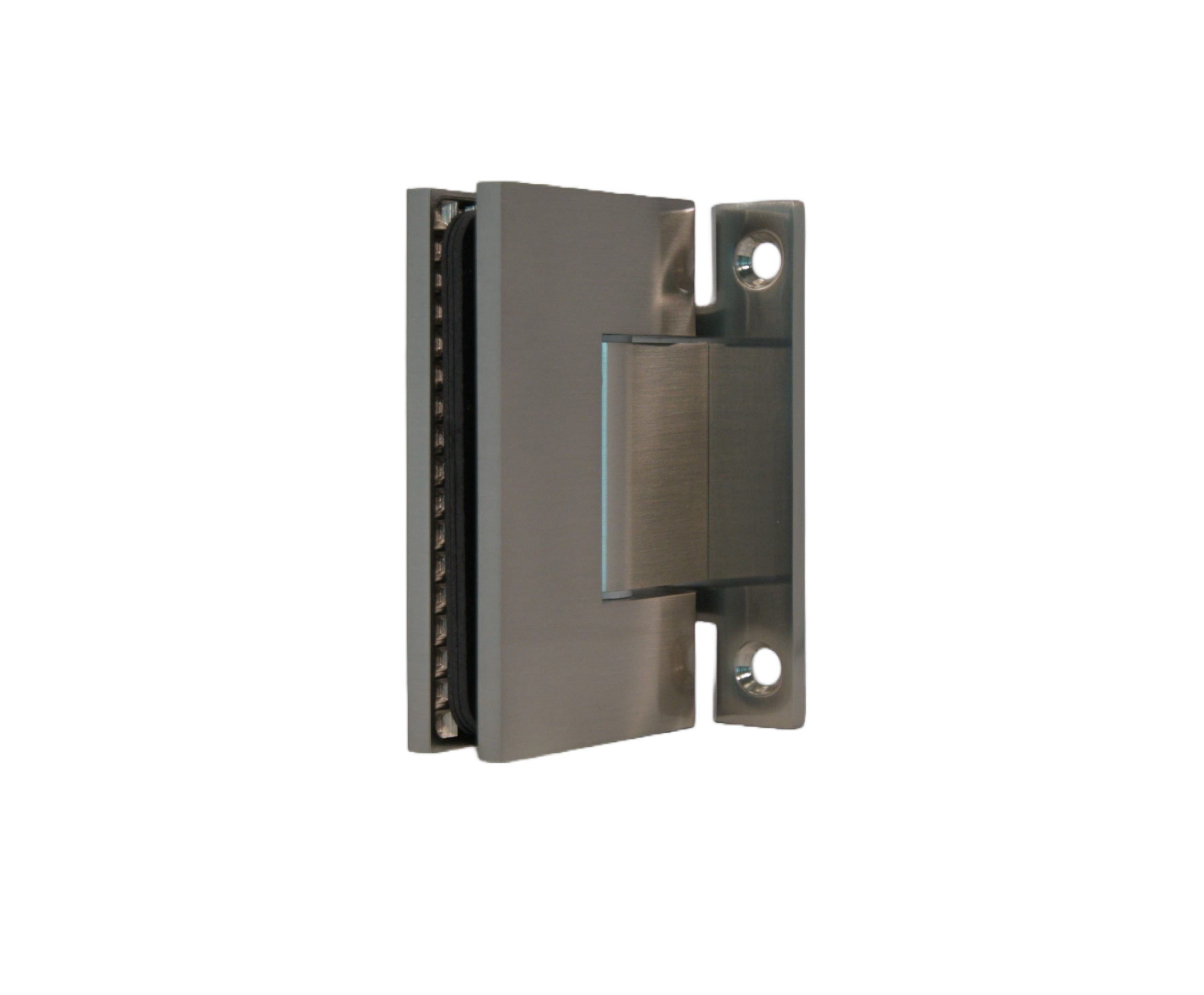

Our Glassfab Gia series shower hardware is the definition of style and functionality. These hinges features a 5-degree reversible pivot pin, ensuring stronger pressure on the jam or seal. You have the option of altering the closing position of the door 5 degrees inward by utilizing the opposite side of the pivot pin, which has been pre-machined. Elevate your bathroom with Glassfab’s Gia series for a premium blend of design and practicality.

Purchase all hardware within the Glassfab Series to ensure the same design and color.

Important Information:

Glass Sizes:                 3/8” (10mm) and 1/2” (12mm) thick tempered safety glass
Construction:             Solid Brass
Closing Type:              Self-centering when within 15 degrees of closed position
Cutout Required:       See Image

Maximum Door Capacities for          Two Hinges                Three Hinges
Maximum Door Weight:                       80lbs (36kg)                 120lbs (54kg)
Maximum Door Width:                         28” (711mm)                  32” (813mm)

Use of Gaskets:
For 3/8” (10mm) Glass: Use one thick gasket on each side.
For 1/2” (12mm) Glass: Use one thin gasket on each side.

Recommendations:
For public safety, we recommend the use of only tempered safety glass. Power Tools are not to be used to secure faceplate screws.

Unit of Measure:  Each

HSW & HBW DIMENSIONS
HSW HBW HSO & HBO TEMPLATE
HSW & HBW BREAKDOWN
