Description

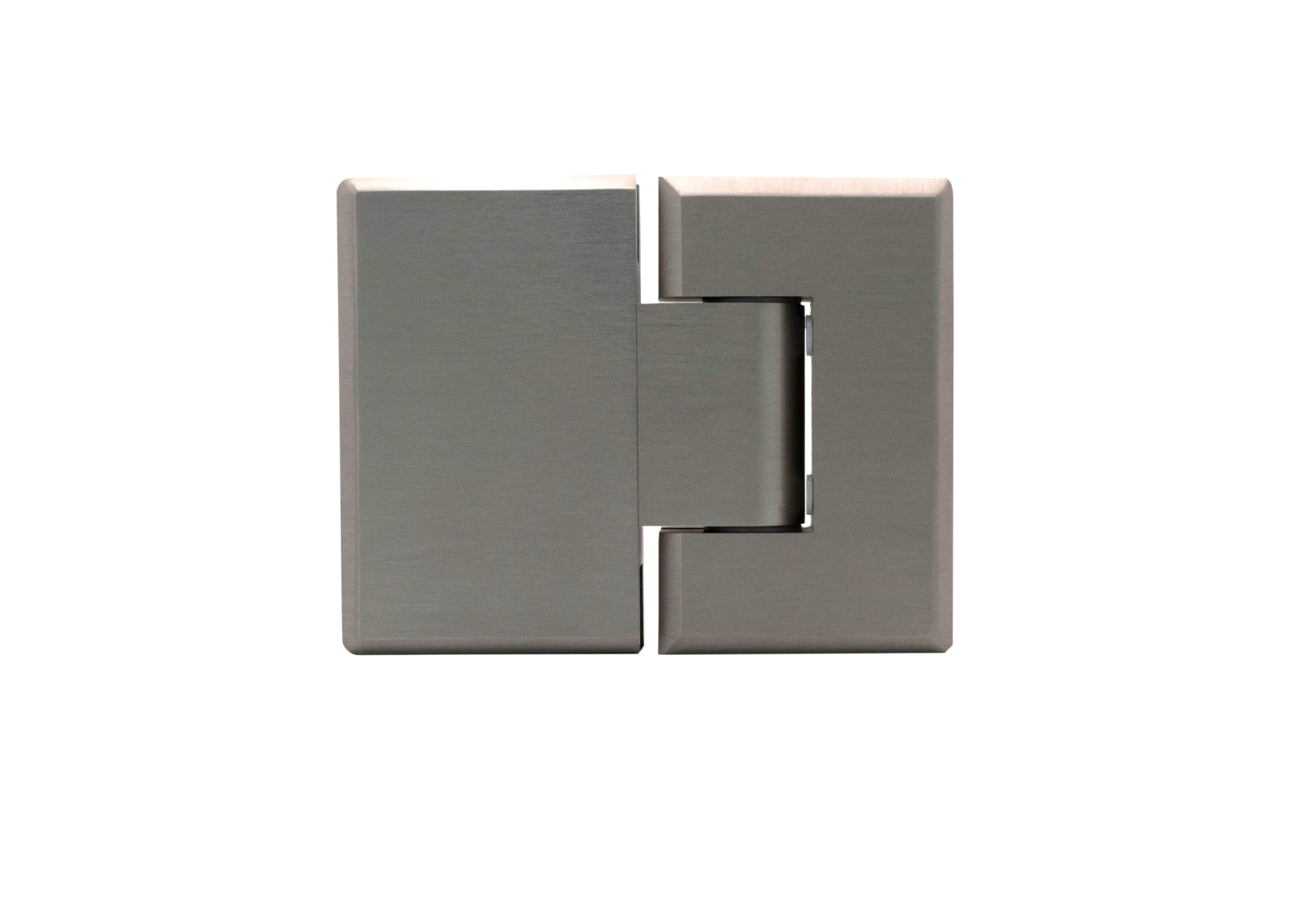

Our Glassfab Piper series shower hardware is the definition of style and functionality. These hinges feature an adjustable pivot pin, ensuring stronger pressure on the jam or seal. You have the option of altering the closing position, then locking the adjustment screws down in the desired location. Elevate your bathroom with Glassfab’s Piper series for a premium blend of design and practicality.

Purchase all hardware within the Glassfab Series to ensure the same design and color.

Important Information:

Glass Sizes: 3/8” (10mm) to 1/2” (12mm) thick tempered safety glass
Construction: Solid Brass
Closing Type: Self-centering when within 15 degrees of closed position
Cutout Required: See Image

Maximum Door Capacities for          Two Hinges                Three Hinges
Maximum Door Weight:                       80lbs (36kg)                 120lbs (54kg)
Maximum Door Width:                         28” (711mm)                  32” (813mm)

Use of Gaskets:
For 3/8” (10mm) Glass: Use one thick gasket on each side.
For 1/2” (12mm) Glass: Use one thin gasket on each side.

Recommendations: For public safety, we recommend the use of only tempered safety glass.  Power Tools are not to be used to secure faceplate screws.

Unit of Measure:  Each

HSIA & HBIA DIMENSIONS
HSIA & HBIA TEMPLATE
HSIA & HBIA BREAKDOWN
