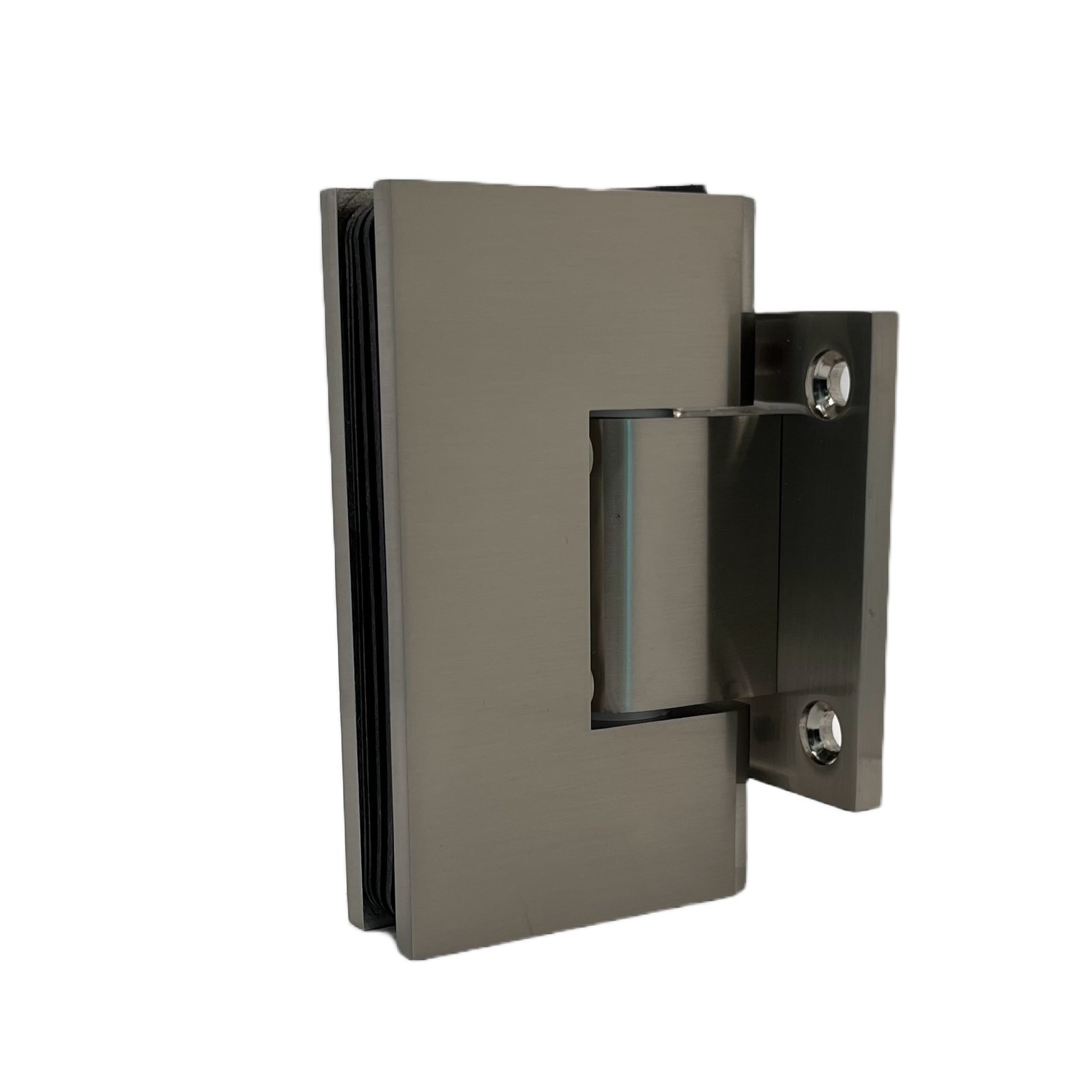

Glassfab Viona Heavy Duty Square Wall Mounted Hinge W/ Short Back Plate

Designed For Use On 3/8” and 1/2” (10mm and 12mm) Tempered Glass Only

With 5 Degree Reversible Pivot Pin

Height: 3-15/16” (see image)

Unit of Measure: Each

Log in To View Prices

Glassfab Viona Heavy Duty Square Wall Mounted Hinge W/ Short Back Plate

Description

Our Glassfab Viona series shower hardware is the definition of style and functionality. These hinges features a 5-degree reversible pivot pin, ensuring stronger pressure on the jam or seal. You have the option of altering the closing position of the door 5 degrees inward by utilizing the opposite side of the pivot pin, which has been pre-machined. Elevate your bathroom with Glassfab’s Viona series for a premium blend of design and practicality.

Purchase all hardware within the Glassfab Series to ensure the same design and color.

Important Information:

Glass Sizes:                 3/8” (10mm) and 1/2” (12mm) thick tempered safety glass
Construction:             Solid Brass
Closing Type:              Self-centering when within 15 degrees of closed position
Cutout Required:       See Image

Maximum Door Capacities for 3/8″ Glass          Two Hinges                Three Hinges
Maximum Door Weight:                                                100lbs (45kg)              130lbs (59kg)
Maximum Door Width:                                                 34” (864mm)               34” (864mm)

Maximum Door Capacities for 1/2″ Glass          Two Hinges                Three Hinges
Maximum Door Weight:                                                100lbs (45kg)              130lbs (59kg)
Maximum Door Width:                                                 32” (813mm)                32” (813mm)

Use of Gaskets:
For 3/8” (10mm) Glass: Use one thick gasket on each side.
For 1/2” (12mm) Glass: Use one thin gasket on each side.

Recommendations:
For public safety, we recommend the use of only tempered safety glass. Power Tools are not to be used to secure faceplate screws.

Unit of Measure:  Each

HHSSP DIMENSIONS
HHSSP TEMPLATE
HHSSP BREAKDOWN
