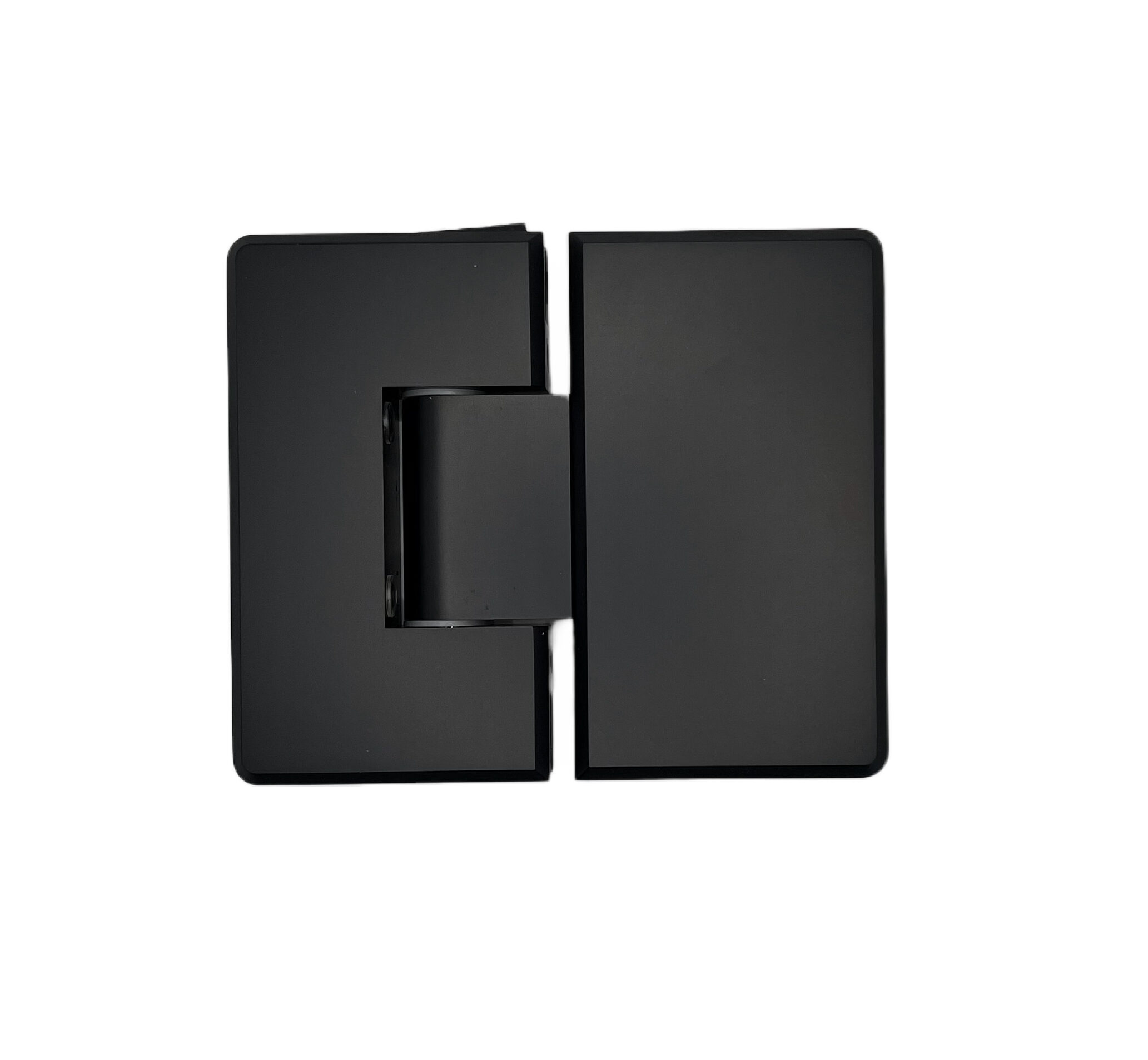

Glassfab Cleo Heavy Duty Beveled Inline Glass to Glass Hinge

$83.99$119.99

Glassfab Cleo Heavy Duty Beveled Inline Glass to Glass Hinge

Description

Our Glassfab Cleo shower hardware is the definition of style and functionality. These hinges feature a 5-degree reversible pivot pin, ensuring stronger pressure on the jam or seal. You have the option of altering the closing position of the door 5 degrees inward by utilizing the opposite side of the pivot pin, which has been pre-machined. Elevate your bathroom with Glassfab’s Cleo for a premium blend of design and practicality.

Purchase all hardware within the Glassfab Series to ensure the same design and color.

Important Information:

Glass Sizes: 3/8” (10mm) and 1/2” (12mm) thick tempered safety glass
Construction:
Solid Brass
Closing Type: Self-centering when within 15 degrees of closed position
Cutout Required: See Image

Maximum Door Capacities for          Two Hinges                Three Hinges
Maximum Door Weight:                       110lbs (50kg)                 140lbs (63kg)
Maximum Door Width:                         36” (914mm)                  36” (914mm)

Use of Gaskets:
For 3/8” (10mm) Glass: Use one thick gasket on each side.
For 1/2” (12mm) Glass: Use one thin gasket on each side.

Recommendations: For public safety, we recommend the use of only tempered safety glass. Do not use power tools when installing these hinges.

Unit of Measure:  Each

HHSI & HHBI DIMENSIONS
HHSI & HHBI TEMPLATE
