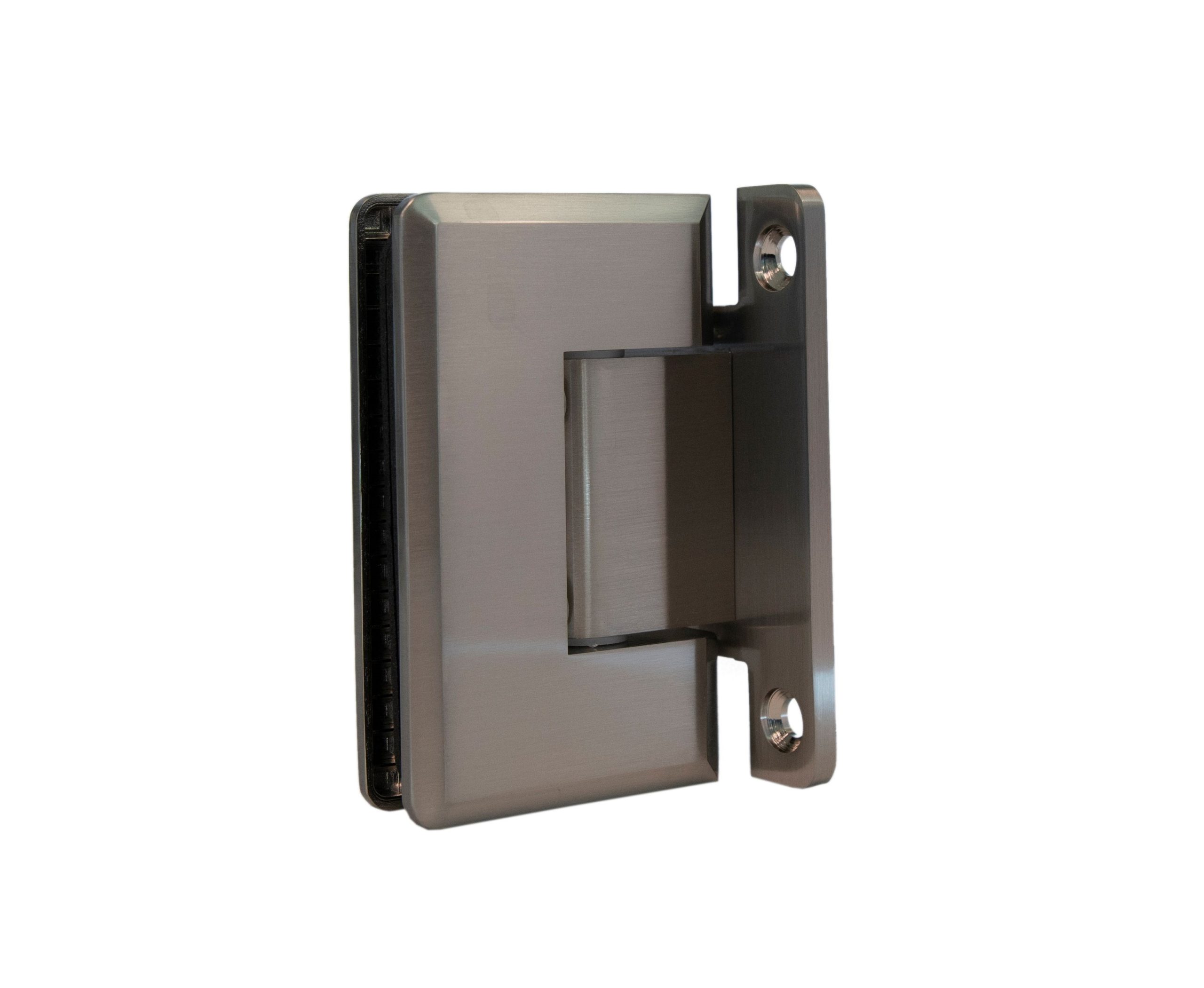

Glassfab Cleo Heavy Duty Beveled Wall Mounted Hinge with H Plate

Designed For Use On 3/8” and 1/2” (10mm and 12mm) Tempered Glass Only

With 5 Degree Reversible Pivot Pin

Height: 3-15/16” (see image)

Unit of Measure: Each

Log in To View Prices

Glassfab Cleo Heavy Duty Beveled Wall Mounted Hinge with H Plate

Description

Our Glassfab Cleo shower hardware is the definition of style and functionality. These hinges feature a 5-degree reversible pivot pin, ensuring stronger pressure on the jam or seal. You have the option of altering the closing position of the door 5 degrees inward by utilizing the opposite side of the pivot pin, which has been pre-machined. Elevate your bathroom with Glassfab’s Cleo for a premium blend of design and practicality.

Purchase all hardware within the Glassfab Series to ensure the same design and color.

Important Information:

Glass Sizes:                  3/8” (10mm) and 1/2” (12mm) thick tempered safety glass
Construction:              Solid Brass
Closing Type:               Self-centering when within 15 degrees of closed position
Cutout Required        See Image

Maximum Door Capacities for           Two Hinges                 Three Hinges
Maximum Door Weight:                       110lbs (50kg)                140lbs (63kg)
Maximum Door Width:                          36” (914mm)                 36” (914mm)

Use of Gaskets:
For 3/8” (10mm) Glass: Use one thick gasket on each side.
For 1/2” (12mm) Glass: Use one thin gasket on each side.

Recommendations:
For public safety, we recommend the use of only tempered safety glass. Power Tools are not to be used to secure faceplate screws.

Unit of Measure:  Each

HHBW DIMENSIONS
HHBW TEMPLATE
HHBW BREAKDOWN
