Description

• Accommodates 3/8″ to 1/2″ (10 to 12 mm) Glass

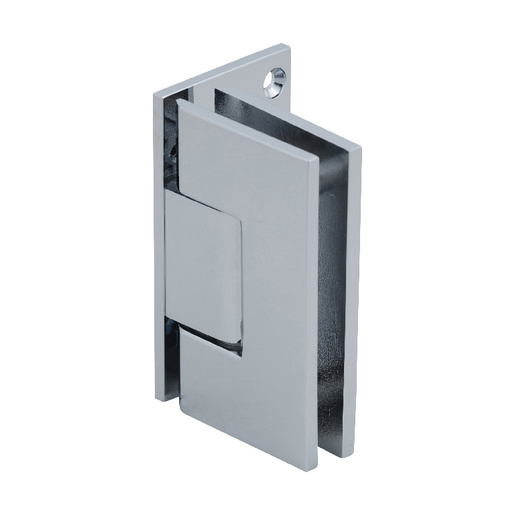

• Wall Mount Offset Back Plate Standard Model
• Use Monolithic Tempered Glass
• Apply medium-strength threadlocker on cover plate screws

Using two hinges with 3/8″ glass (10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 34″ (864 mm).

Using two hinges with 1/2″ glass (12 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 32″ (813 mm).

Using three hinges with 3/8″ glass (10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34″ (864 mm).

Using three hinges with 1/2″ glass (12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32″ (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8″ (10 mm) to 1/2″ (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required – Except V1E092 which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
