Description

• Top or Bottom Mount
• For Use with 1/2″ (12 mm) Glass
• Use Monolithic Tempered Glass

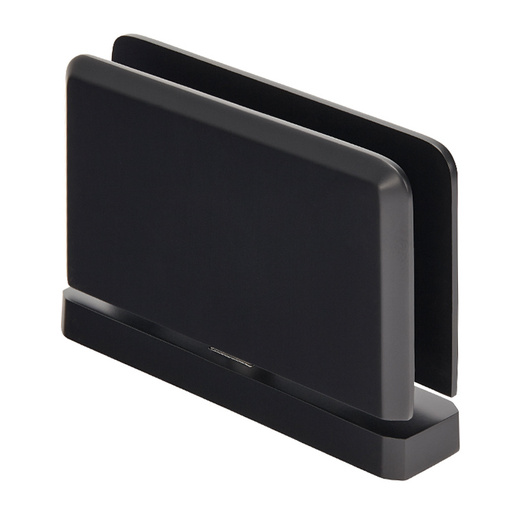

SENIOR PRIMA: Using two hinges with 1/2″ (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36″ (914 mm).

SPECIFICATIONS:
Glass Thickness:
Senior Prima 1/2″ (12 mm) Tempered Safety Glass
Junior Prima 1/4″ (6 mm) Tempered Safety Glass
Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15° of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
