Description

• • Supports Heavier Glass Shower Doors
  • Concealed Screws

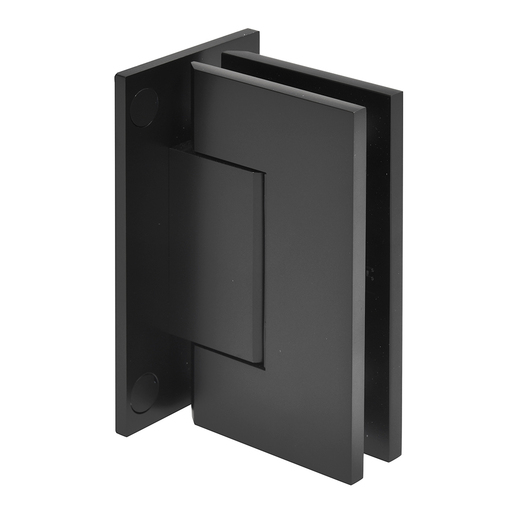

  • Wall Mount Full Back Plate Standard Model
  • Single NAF Gasket compatible with both 3/8” and 1/2” glass
  • Use Monolithic Tempered Glass
  • Apply medium-strength threadlocker on cover plate screws

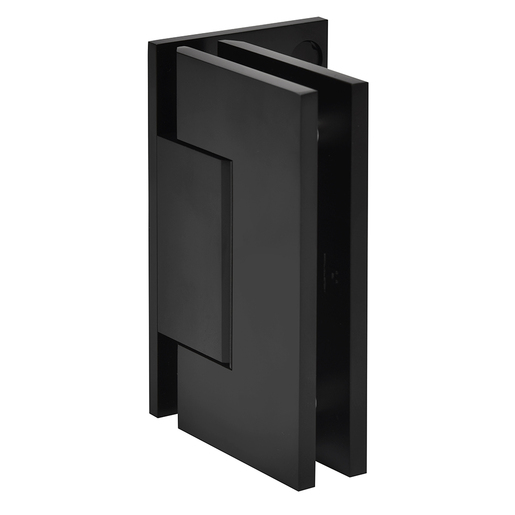

  The Trento hinge uses durable NAF Gaskets, compatible with both 3/8″ and 1/2″ (10 and 12 mm) monolithic tempered glass. This compressible material adapts to help maintain a consistent grip between the hinge and glass across varying surface conditions.

  STANDARD REVERSIBLE PIVOT PIN: Each Trento Hinge contains a Reversible Pivot Pin. The standard reversible pivot pin allows you to adjust the door’s closed position. By rotating (not flipping) the pin, you can shift the self-centering angle by 5 degrees—either 95° or 85°—to ensure the door closes properly and aligns correctly with surrounding panels. This adjustment helps maintain a tight seal and smooth operation.

  Using two hinges with 3/8″ and 1/2″ (10 and 12 mm) glass, the hinge can support doors up to 150 lbs. (68 kg) with a maximum width of 40″ (1016 mm).

  Using three hinges with 3/8″ and 1/2″ (10 and 12 mm) glass, the hinge can support doors up to 190 lbs. (86 kg) for doors up to 40″ (1016 mm) wide.
