Description

• For 3/8″ to 1/2″ (10 to 12 mm) Glass
• Use Monolithic Tempered Glass
• Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
• Solid Brass
• A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an ‘All-Glass’ Look
• Glass Fabrication Required to Accommodate Clamps

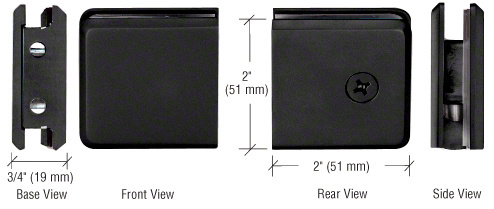

CRL Beveled Wall Mount Clamp Notch-in-Glass Style) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 1/16″ (2 mm). Clear silicone can be used to provide a clean, water resistant seal.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8″ to 1/2″ (10 to 12 mm)
Glass Fabrication Required: BGCU1 Requires Notch; BCU4, BGC037 and BGC039 Require 3/4″ (19 mm) Holes
Includes: Mounting Screws and Gaskets
