Description

• For 1/4″ (6 mm) Glass
• Use Monolithic Tempered Glass
• Ideal for Small All Glass Showcases Requiring a Hinged Front Door
• Two 1/2″ (12 mm) Holes Required

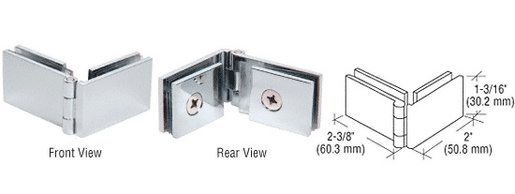

The CRL 90 Degree Glass-to-Glass Showcase Hinges are constructed of forged brass and are for use with 1/4″ (6 mm) thick glass panels that meet at 90 Degrees. The overlapping lip on the side of the hinge prevents any rotation and assures a secure fit. This hinge is perfect for small all-glass showcases requiring a hinged front door. Hinges are through-bolted and require two 1/2″ (12 mm) holes in the glass. Gaskets are included. The maximum recommended door width is 18″ (457 mm).

NOTE: Maximum weight should not exceed 24 lbs. (10.9 kg).
