Description

• Supports Heavier Glass Shower Doors
• Concealed Screws
• Wall Mount Offset Back Plate Standard Model
• Single NAF Gasket compatible with both 3/8” and 1/2” glass
• Use Monolithic Tempered Glass
• Apply medium-strength threadlocker on cover plate screws
• Apply medium-strength threadlocker on cover plate screws

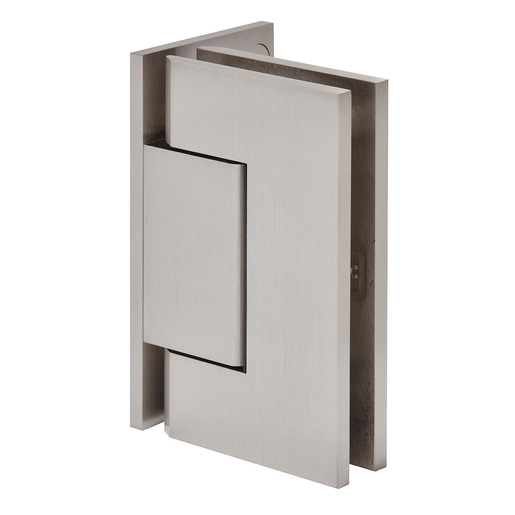

The CRL Trento Hinge is a heavy-duty hinge designed for modern frameless shower doors, supporting panels up to 140 lbs. in a standard two-hinge installation. Its sleek rectangular body features a narrow gap and fully concealed mounting screws for a refined appearance.

The Trento hinge uses durable NAF Gaskets, compatible with both 3/8″ and 1/2″ (10 and 12 mm) monolithic tempered glass. This compressible material adapts to help maintain a consistent grip between the hinge and glass across varying surface conditions.

STANDARD REVERSIBLE PIVOT PIN: Each Trento Hinge contains a Reversible Pivot Pin. The standard reversible pivot pin allows you to adjust the door’s closed position. By rotating (not flipping) the pin, you can shift the self-centering angle by 5 degrees—either 95° or 85°—to ensure the door closes properly and aligns correctly with surrounding panels. This adjustment helps maintain a tight seal and smooth operation.

Using two hinges with 3/8″ and 1/2″ (10 and 12 mm) glass, the hinge can support doors up to 140 lbs. (63 kg) with a maximum width of 40″ (1016 mm).

Using three hinges with 3/8″ and 1/2″ (10 and 12 mm) glass, the hinge can support doors up to 175 lbs. (79 kg) for doors up to 40″ (1016 mm) wide.
